Office Building
Tokyo | Functions Provided: Lighting Control / HVAC Control / Curtain Control
Data Center
Chiba | Functions Provided: Power Monitoring
Data Center
Chiba | Functions Provided: Monitoring and Third-Party BMS Integration
About Niagara Framework®
Niagara Framework® is a middleware platform for building automation systems that supports standard open protocols such as LonWorks, BACnet, Modbus, OPC UA, and oBIX. It enables the creation of integrated building automation solutions while providing users with direct access to a wide range of operational data for monitoring, analysis, and decision-making.
As a truly open framework, Niagara 4 comes equipped with advanced visualization capabilities, enhanced security features, intuitive navigation tools, and powerful search functions as standard. It offers a comprehensive set of tools and features designed to help users maximize the value of IoT and gain deeper insights into their connected systems.
Features of Niagara Framework®
Support for Industry-Standard Open Protocols
- Compatible with industry-standard open protocols, including LonWorks, BACnet, Modbus, OPC UA, and oBIX
- Proven track record with more than 1.3 million installations across over 80 countries and regions worldwide
Scalable Solutions from Small Offices to Large Buildings
- Highly scalable architecture that can be optimally configured for environments ranging from small tenant offices to large-scale facilities such as data centers
- Supports both full-scale building management systems and targeted applications, including energy monitoring, HVAC management, and demand control
- Suitable for deployment in both new and existing buildings, including older facilities
HTML5-Based Management Interface
- Easily create intuitive and dynamic management dashboards
- No dedicated management PC required
- Browser-independent display with no reliance on specific browser specifications or add-ons
- Accessible from tablets and smartphones
- Supports embedded links to web-based management interfaces of other systems

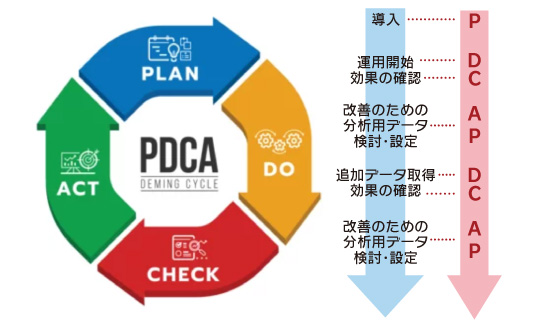

Agile and Adaptable Operations
- Enables continuous enhancement and optimization when the original system configuration no longer meets evolving operational requirements
- Allows new performance indicators and analytics to be created by combining newly added data points with existing operational data
- Empowers operators to easily test and develop new metrics and use cases through hands-on system configuration and management
Niagara: Enabling the Building Operating System (BOS)
Smart buildings are attracting growing attention worldwide for their ability to optimize energy usage, maximize space utilization, improve maintainability, and enable predictive maintenance. However, building data has traditionally been underutilized.

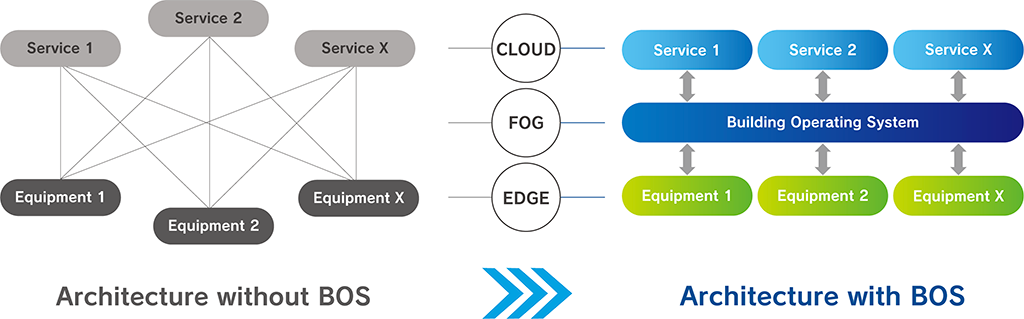

One of the key reasons is that each desired service and building system typically requires custom integration. As the number of connected services and devices increases, development costs and implementation effort grow proportionally. (See illustration on the left.)
A Building Operating System (BOS) addresses this challenge by understanding the protocols (languages) used by both services and building systems, enabling seamless communication, data processing, and interoperability between them. (See illustration on the right.)
By serving as a common integration layer, BOS connects services and devices more efficiently, significantly reducing development costs and implementation effort while accelerating the realization of smart building solutions.
Hardware / Software
Niagara Supervisor
Software-Based Controller

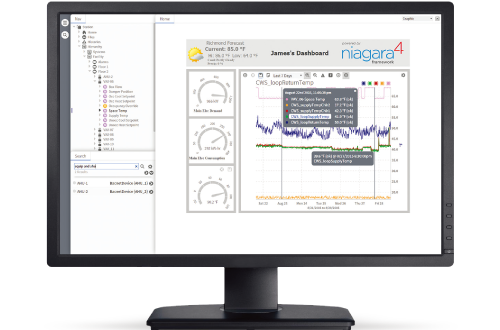

Niagara Supervisor is a software platform powered by Niagara Framework® that integrates JACE controllers, IP-enabled devices, and various systems into a server or workstation where it is installed. It provides centralized system management and enables real-time monitoring through a standard web browser.
JACE® 8000 Controller
JACE® 9000 Controller
JACE® 9000 Controller

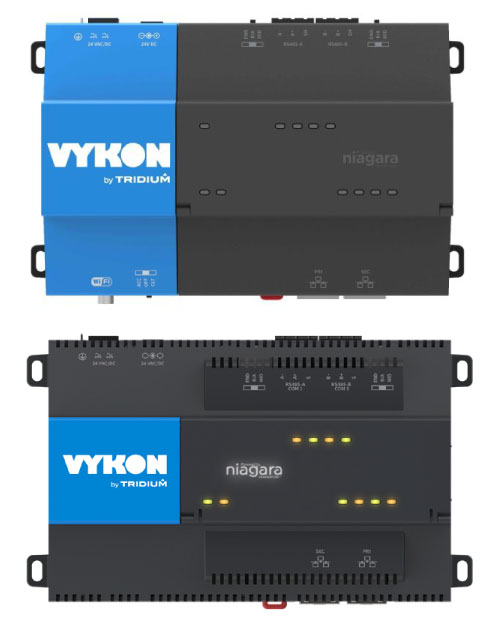

The JACE® 8000 and JACE® 9000 controllers are compact embedded IoT controllers designed to connect and integrate a wide range of devices and subsystems.
Equipped with Internet connectivity and web service capabilities, these controllers can independently perform control, monitoring, data logging, alarm management, and scheduling functions. They can also deliver real-time data and graphical interfaces to standard web browsers over a local area network (LAN) or the Internet.
JACE® 8000 is scheduled to be discontinued.
The final month for purchase from the manufacturer is December 2026.
Niagara Edge 10
Niagara Edge 10 with Niagara Framework®
IP-Based I/O Controller

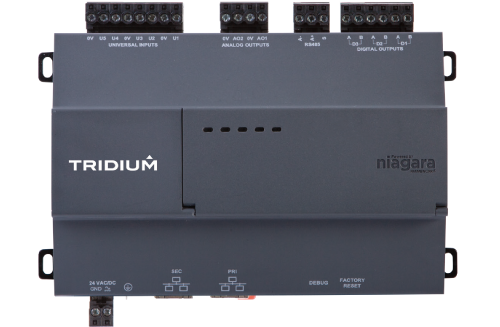

Niagara Edge 10 is a cost-effective I/O controller specifically designed for small-scale facilities and applications. It is powered by Niagara Framework®, providing seamless integration with building automation and IoT systems.
The controller supports connections to field devices with a capacity of up to three devices or 50 points, making it an ideal solution for small and distributed control environments.
This product is scheduled for discontinuation.
The manufacturer's final order month is June 2026.
JACE® IO R
Flexible and Scalable I/O Modules

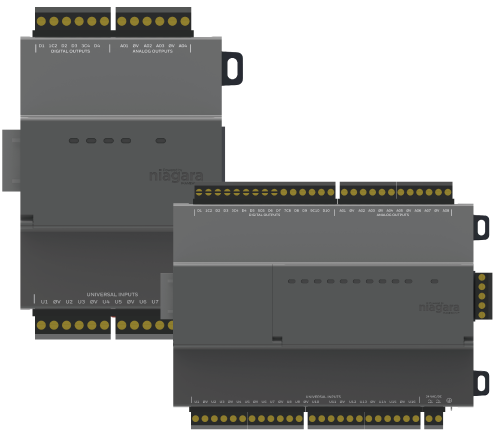

JACE® IO-R is an I/O module designed for remote monitoring and remote control applications. When used in combination with JACE® 8000, JACE® 9000, or Edge 10, it enables direct connection to sensors and devices located up to 1,200 meters (3,937 ft) away.
Two models are available to meet different application requirements:
- IO-R-34: Supports up to 34 I/O points
- IO-R-16: Supports up to 16 I/O points
With its flexible and scalable design, the JACE® IO-R provides an efficient solution for extending monitoring and control capabilities across distributed facilities and equipment.
Sanko IB Project Portfolio (Selected Projects)
Data Center
Chiba | Functions Provided: Centralized Monitoring and Third-Party System Integration
Data Center
Osaka | Functions Provided: Third-Party System Integration<
Hotel
Tokyo | Functions Provided: Integration with Third-Party Guest Room Control Systems
Getting Started with Niagara (Japanese Only)
Strong support system by engineers
We strongly support system development by experienced engineers.
- Consulting
- Understand project requirements and characteristics to develop a strategic implementation plan.
- Conduct risk assessments and propose effective mitigation strategies.
- Troubleshooting
- Perform initial fault isolation and issue diagnosis.
- Identify the root cause by escalating issues to the manufacturer when necessary.s
- Training
- Comprehensive training programs tailored for system developers and sales engineers.
- A wide range of training content, covering everything from fundamental concepts to real-world use cases and practical applications.
